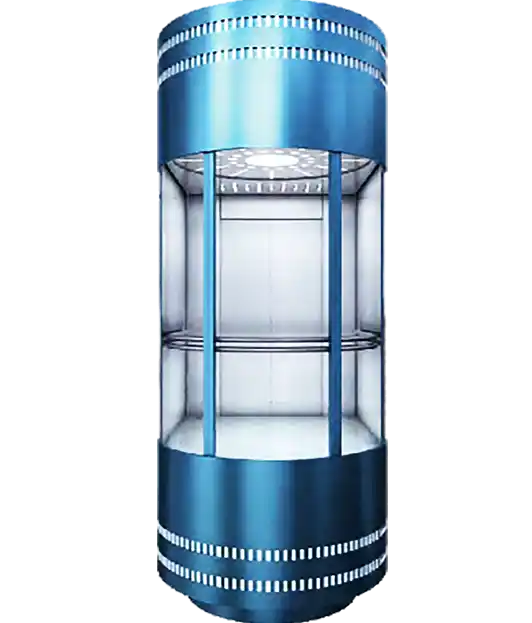

Capsule Elevator, Panoramic Glass Lift, Observation Sightseeing Lift
Specifications:
Upper/Lower Cover: Steel plate paint, lighting
Observation Wall: Safety laminated glass
Decoration Ceiling: Steel plate paint top, ivory acrylic lighting
Cabin Wall: Stainless steel
Handrail: Stainless steel double pipe
Floor: PVC (Standard)
Technical Specifications:
| Category |
Specification |
Typical Range / Options |
| Type |
Capsule (Glass Panoramic) Elevator |
Full Glass, Semi-Glass, Stainless Steel |
| Load Capacity |
Passenger / Light Commercial |
400 KG – 1600 KG (4–21 persons) |
| Speed |
Low to Mid-Rise |
0.5 M/S – 2.5 M/S |
| Travel Height |
Maximum Vertical Rise |
Up to 50 M (~16 floors) |
| Hoistway |
Self-Supported or Attached to Structure |
Glass, Steel, or Hybrid |
| Drive System |
Traction (Geared/Gearless) or Hydraulic |
Gearless (for smoothness) |
| Door Type |
Automatic Sliding or Telescopic |
Single/Double Speed, Center Opening |
| Glass Type |
Tempered Laminated Glass (Safety) |
10–12 mm thickness, UV-resistant |
| Lighting |
LED Ambient Lighting |
RGB Color Options, Motion-Activated |
| Control System |
Microprocessor-Based |
Touchscreen, RFID, or Button Panel |
| Safety Features |
Overload Sensor, Emergency Brake, Alarm |
Backup Power (UPS), Fire-Rated Options |
| Customization |
Shape, Color, Lighting Effects |
Circular, Oval, Square, Transparent |
| Power Supply |
Standard/Energy-Efficient (Varies by Model) |
220–480V, 50/60Hz |
| Installation Time |
Depends on Complexity |
2–8 Weeks |
Q/A: Elevator Industry Insights
Q1: How do glass elevators handle safety in extreme weather?
A: Laminated safety glass undergoes thermal tempering to resist shattering. Heating elements prevent frost/condensation, while seismic buffers stabilize cabins during storms.
Q2: Can observation lifts be installed in old buildings?
A: Yes! Retrofitting uses lightweight materials and compact machine rooms. Structural reinforcements adapt existing shafts for modern capsule elevators.
Q3: What’s the lifespan of a panoramic elevator?
A: With proper maintenance, 20–25 years. Key elevator components like glass panels are replaceable without full system overhauls.
Q4: How do sightseeing lifts reduce energy consumption?
A: Regenerative drives capture descent energy to power ascents. LED lighting and sleep-mode systems cut idle draw by 30% versus conventional lifts.
Q5: Are these viable for skyscrapers?
A: Absolutely. High-rise buildings use double-decker glass elevators with speed governors (up to 10 m/s) and pressurized cabins for ear comfort.
