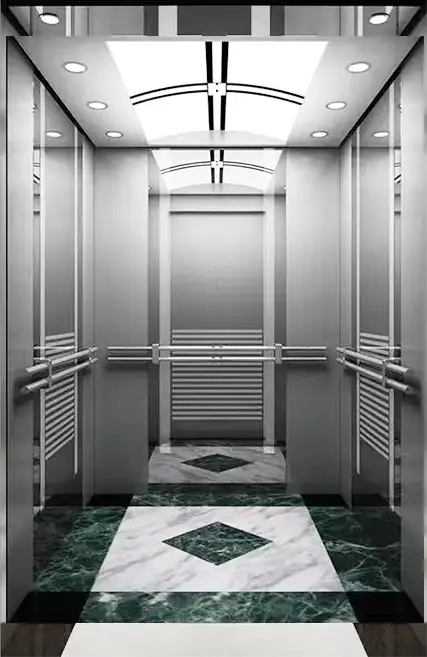

Mirror Etched with Acrylic Dome Top Paneled Passenger Elevator

Mirror Etched with Acrylic Dome Top Paneled Passenger Elevator

Specifications:

Ceiling: Hairline stainless steel, acrylic dome top, LED lights
Cabin Wall: Hairline stainless steel and mirror etched stainless steel
Handrail: Stainless steel double round tube
Floor: PVC(Standard), Marble(Optional)

Passenger Elevator – Advanced Vertical Transportation for Modern Buildings

A passenger elevator is one of the most essential systems in modern architecture, designed to transport people safely, quickly, and comfortably between floors of residential buildings, commercial buildings, and high rise buildings. It plays a vital role in improving accessibility, saving time, and enhancing the overall functionality of multi-level structures. Over the years, the passenger elevator has evolved from a simple lifting device into a highly sophisticated vertical transportation system powered by intelligent control technology, efficient drive systems, and durable elevator components.

Role of Passenger Elevators in Urban Infrastructure

As urban areas continue to expand vertically, vertical transportation becomes increasingly important. Passenger elevators serve as the backbone of city infrastructure by connecting floors in tall structures and allowing people to move seamlessly in buildings that reach great heights. In residential buildings, they provide comfort and accessibility for families, elderly individuals, and persons with disabilities. In commercial buildings, they ensure employees, visitors, and clients can move efficiently to their destinations without delays. For high rise buildings, advanced passenger elevators are essential to handle large traffic volumes with precision and speed.

Design and Structure of Passenger Elevators

A passenger elevator system is made up of multiple elevator components, each designed to deliver safety, efficiency, and comfort. The primary part is the elevator car, which serves as the compartment that carries passengers. It is engineered with smooth interiors, durable materials, and aesthetic designs that match the architectural style of the building.

The elevator car is connected to traction ropes or belts, which are driven by a traction machine—usually located in the machine room or mounted on top of the shaft in a machine-room-less (MRL) configuration. Counterweights balance the load, ensuring efficient movement and reducing motor energy requirements. Guide rails keep the car stable, while advanced door systems ensure quick and safe passenger entry and exit.

Passenger elevators come in a range of weight capacities, from 320 kg for small residential units to 1600 kg or more for commercial installations. The choice of capacity depends on the building’s purpose, height, and passenger traffic flow.

Layout Drawings:
